Today, in different environments, they use wardrobes, drawers, shoe racks, drawers, etc., and they use different tools to build them. In woodworking workshops, various gadgets, clamps, hand screws, etc. are needed that increase the speed and quality of work. The Top Jig model DC+ drawer door clamp is an example of a type of clamp that is used to install drawer doors to increase the accuracy and speed of work during installation. Below, we will provide you with more information about the Top Jig model DC+ drawer door clamp. You can refer to the description section for further review.
Description
43 mm

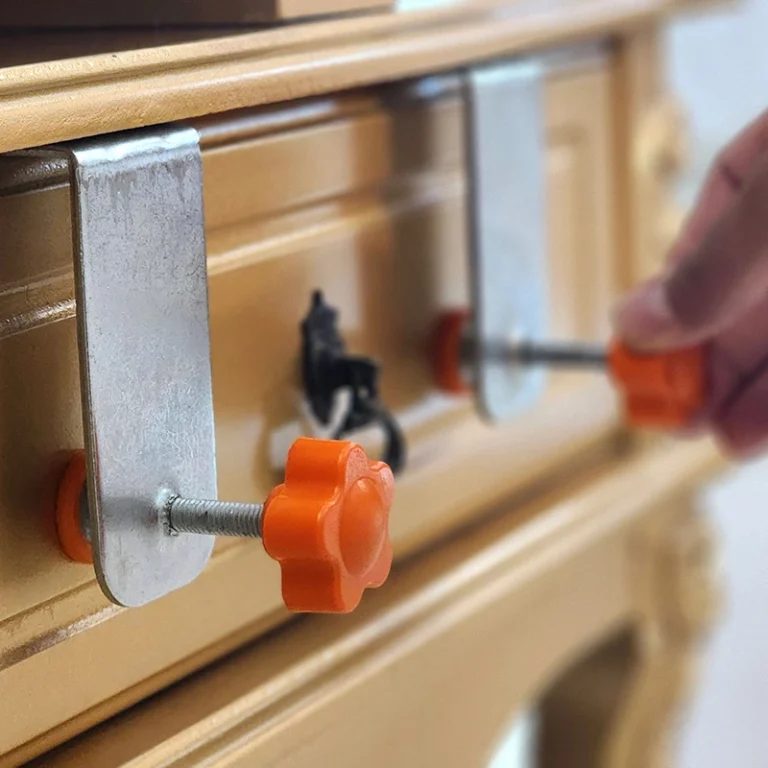

As mentioned in the previous section, this clip model is used to install drawer doors. To use the clips, you must first hold the drawer door on the frame and drawer body with your hand and secure the first clip on the door, then install the second clip so that the upper part of the clip is mounted on the drawer door. Then close the drawer and find the right place for the drawer door to secure and fix the door with a nail or screw, and finally open the clips. This clip model has a plastic protector on the working part that prevents damage to the wood. It has a standard size for all types of drawers.

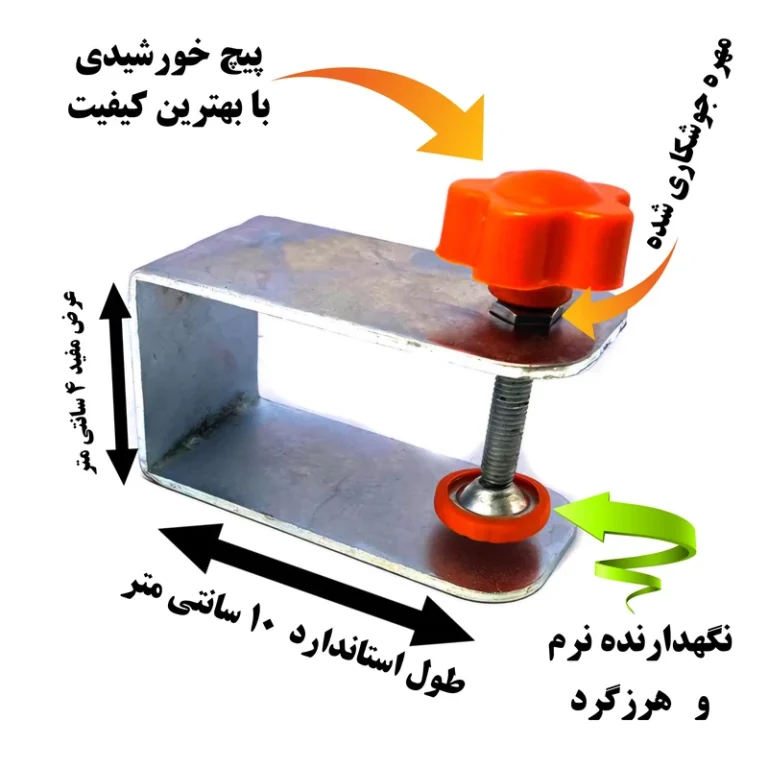

Distinctive features of this DC+ drawer door clamp
– Screw solar flowers with grade 1 materials
– Use of quality nuts for screws
– Standard opening distance
– Very durable tensile iron material
– Screw head screw with a protective layer of the workpiece

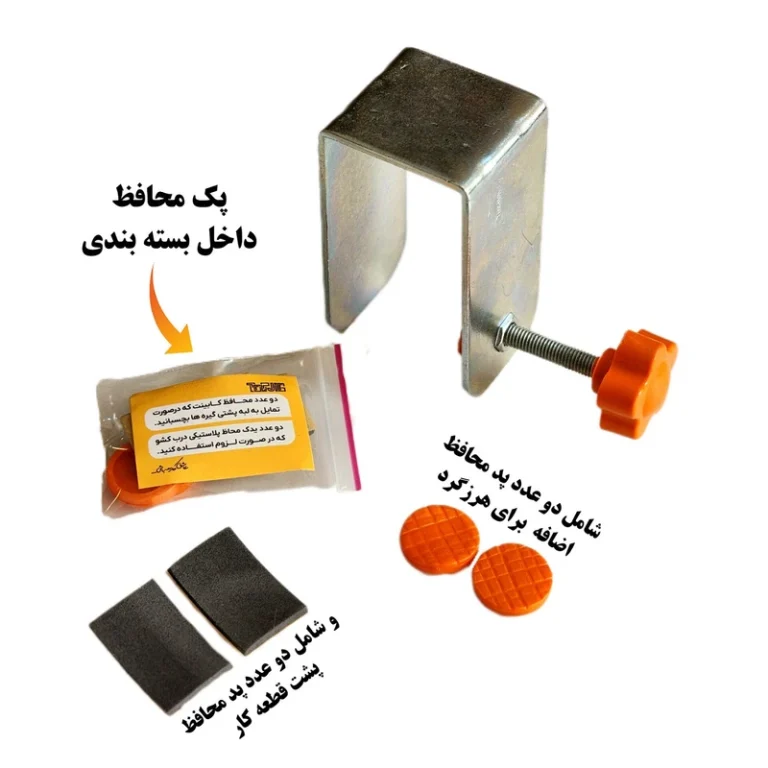

– Has two additional front workpiece protectors and two rear workpiece protectors (inside the packaging)
– Durable packaging

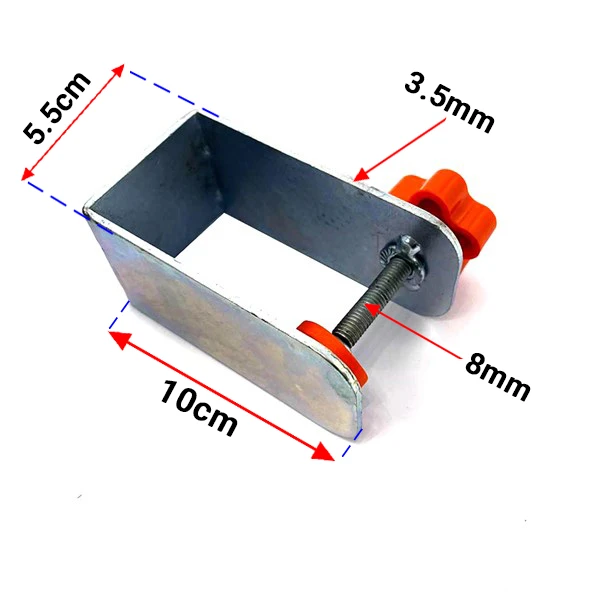

Technical specifications of the DC+ cabinet drawer door clamp
The technical specifications of the DC+ drawer door clamp are as follows:
- Quantity per pack: 2
- Worker depth: 43 mm
- Worker height: 10 cm
- Screw thread length: 45 mm
- Body thickness: 3.5 mm
- Body material: metal
- Suitable thickness 3 mm for the distance between drawers
